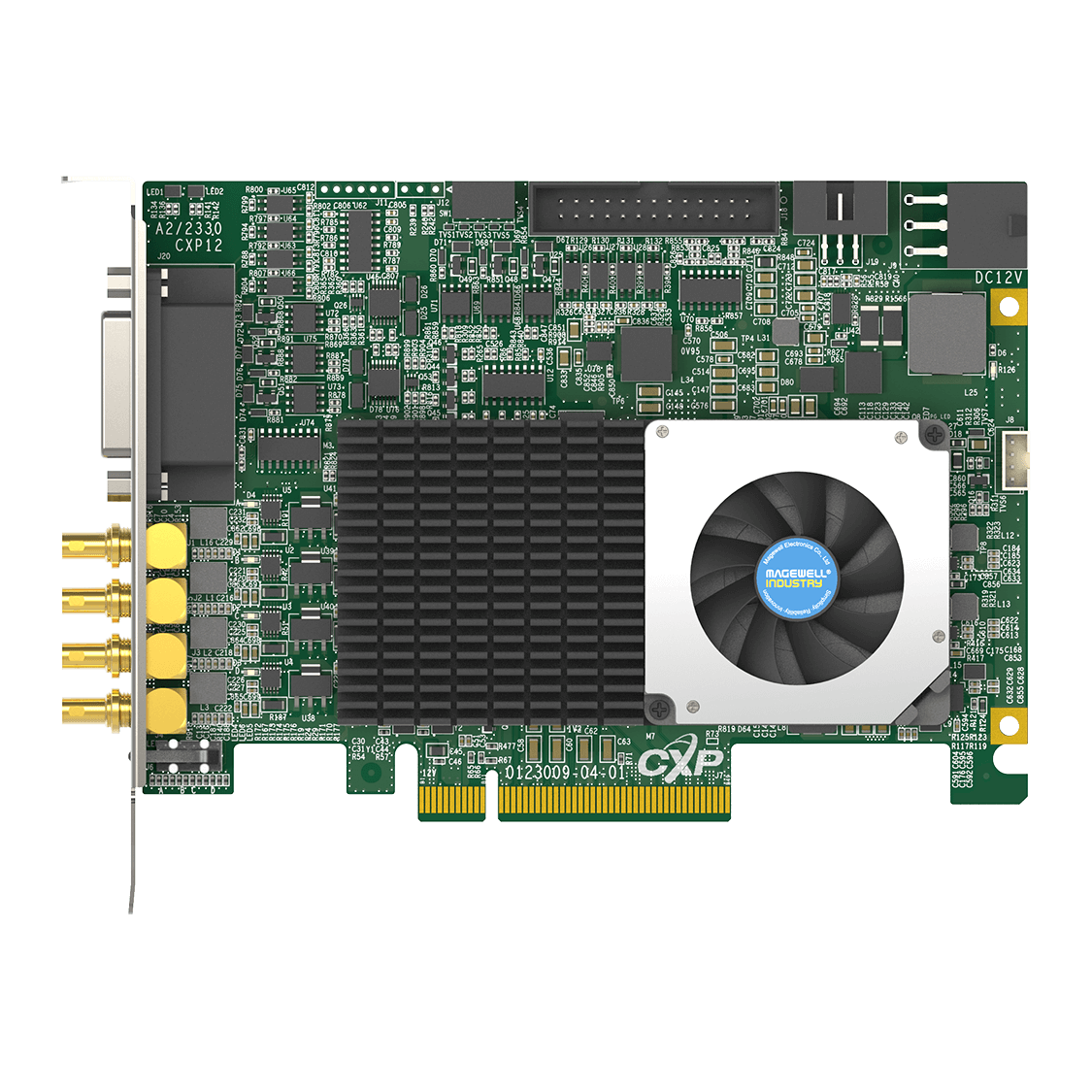

| Features |
- Supports a maximum connection of 4 cameras to a single card
- Supports the CoaXPress 1.1/2.0 protocol standard
- Supports up to 5000MB/s camera transfer bandwidth with four
CoaXPress CXP-12 (up to 12.5 Gpbs) camera connections
- Supports up to 6700MB/s bus bandwidth with the full-height PCIe
card and PCIe Gen 3 x8 interface
- Magewell Flex I/O Viewer client, compatible with all types of
CXP industrial cameras, supports parameter configuration and preview.
- Magewell Flex DMA PCIe transmission engine completes frame
capture and transmission by hardware, no CPU usage.
- Supports disordered industrial camera cable connections
- Supports GenTL Producer and GenICam programming interfaces
- Provides the FPGA Development Kit (FDK), helping users add
customized algorithms and functions
|
| CoaXPress Connectors |
- 4* 75Ω Micro-BNC connectors
- Power over CoaXPress: Feed the camera up to 16W per channel, and
the total power is up to 64W
- Supported rate: 1.25 Gbps, 2.5 Gbps, 3.125 Gbps, 5 Gbps, 6.25
Gbps, 10 Gbps, 12.5 Gbps
|
| Supported Camera |
- Supports Aera-scan cameras and Line-scan cameras
- Supports Grayscale cameras and color cameras (YCbCr, YUV, RGB
and Bayer CFA)
- Tap supports 1X-1Y, 1X-1Y2, 1X-2YE
|
| Firmware Type |
- 4d4s:
- AAAA mode: one 1- or 2- or 4-connection camera
- AABB mode: two 1- and 2-connection cameras
- AABC mode: one 1- or 2-connection camera for Channel A, two
1-connection cameras for Channel B and Channel C
- ABCD: four 1-connection cameras
- Supports disordered cable connections
- Supports Bayer2RGB
- Low power consumption and support for FDK secondary
development
|
| Built-in Image Processing |
- Little endian conversion
- Unpacking of 10-/12-/14-bit data to 16-bit with selectable
justification to LSb or MSb
- Bayer CFA to RGB decoder: 3X3 linear interpolation method
*Note: Bayer CFA to RGB function supports up to 32768 Bytes in a row.
|
| Support for FDK |
- Provides FPGA Development Kit (FDK) for users
- Developed based on 1d1s (single camera) firmware, using the AXI
standard interface
- FPGA model: Xilinx Kintex® UltraScale™ XCKU035
- 99% DSP, 75% FF, 68% LUT, 73% BRAM resources are available
|
| LED Indicators |
4 full-color LED indicators, indicating the status of the corresponding Micro-BNC connectors
according to CXP specifications
|
| Frame Buffers |
2 x 4Gb DDR4-2400 frame buffers (2 GB)
|
| PCIe Interface |
PCIe Gen 3 x8 interface, compatible with PCIe Gen 2/1 and x4, x2, x1
|

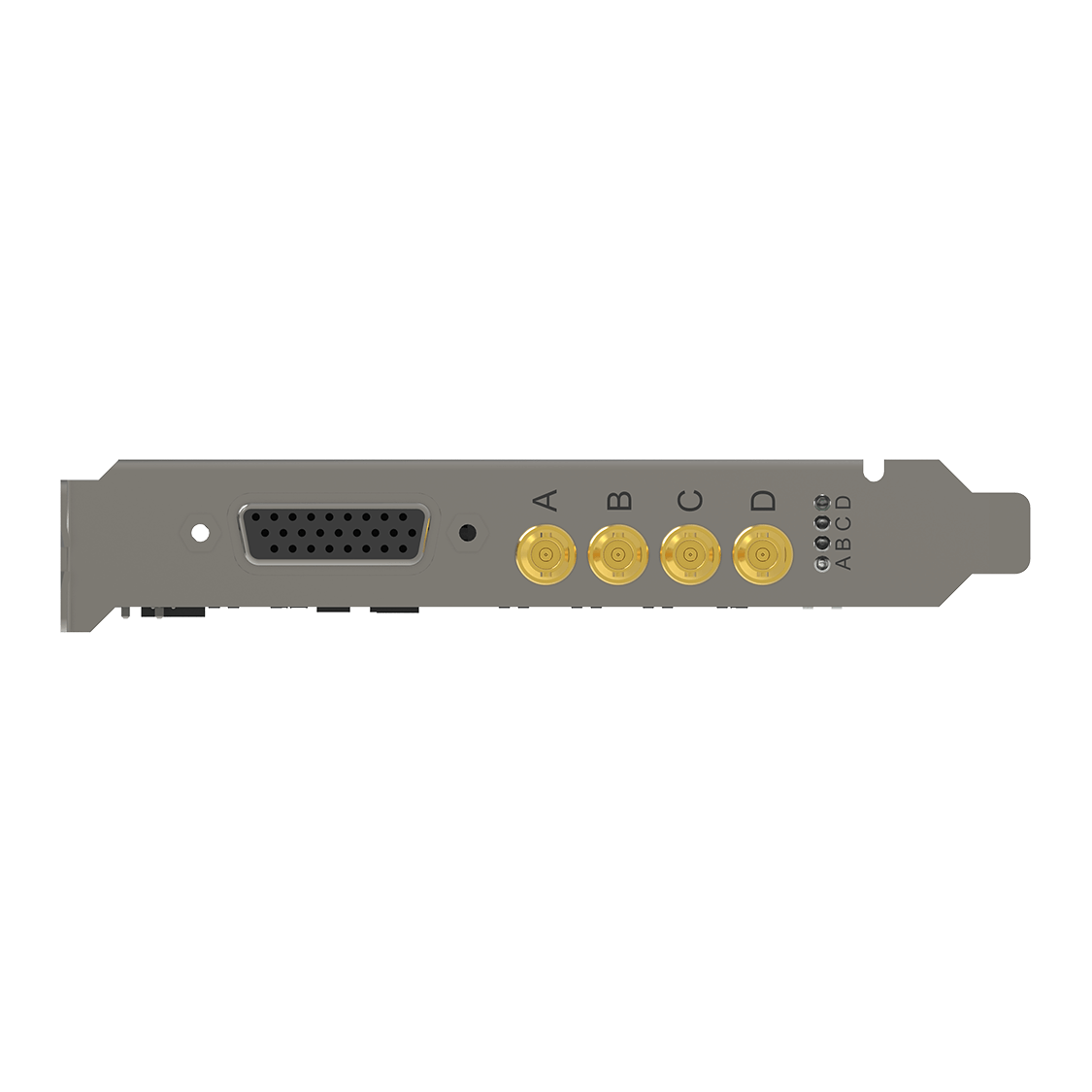

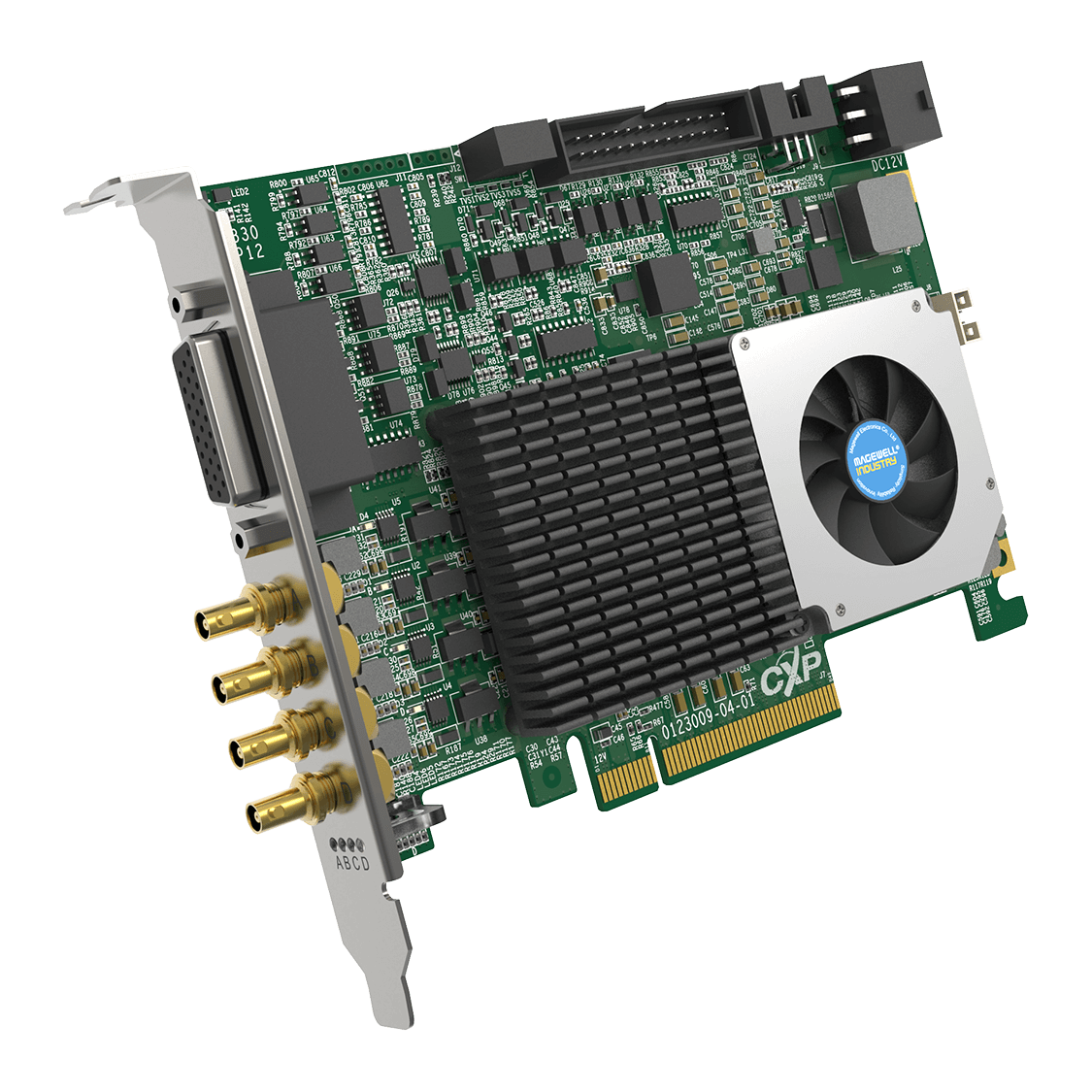

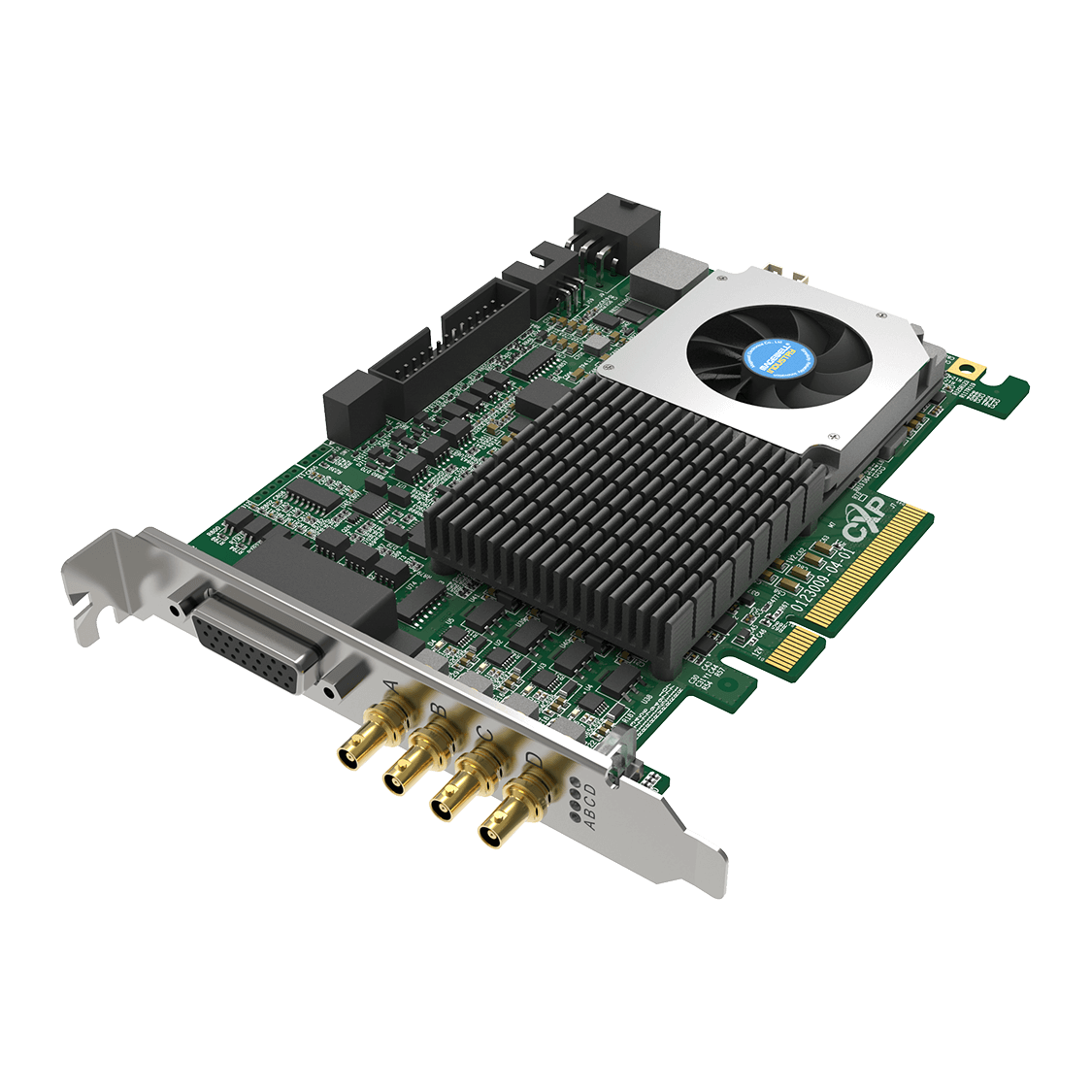

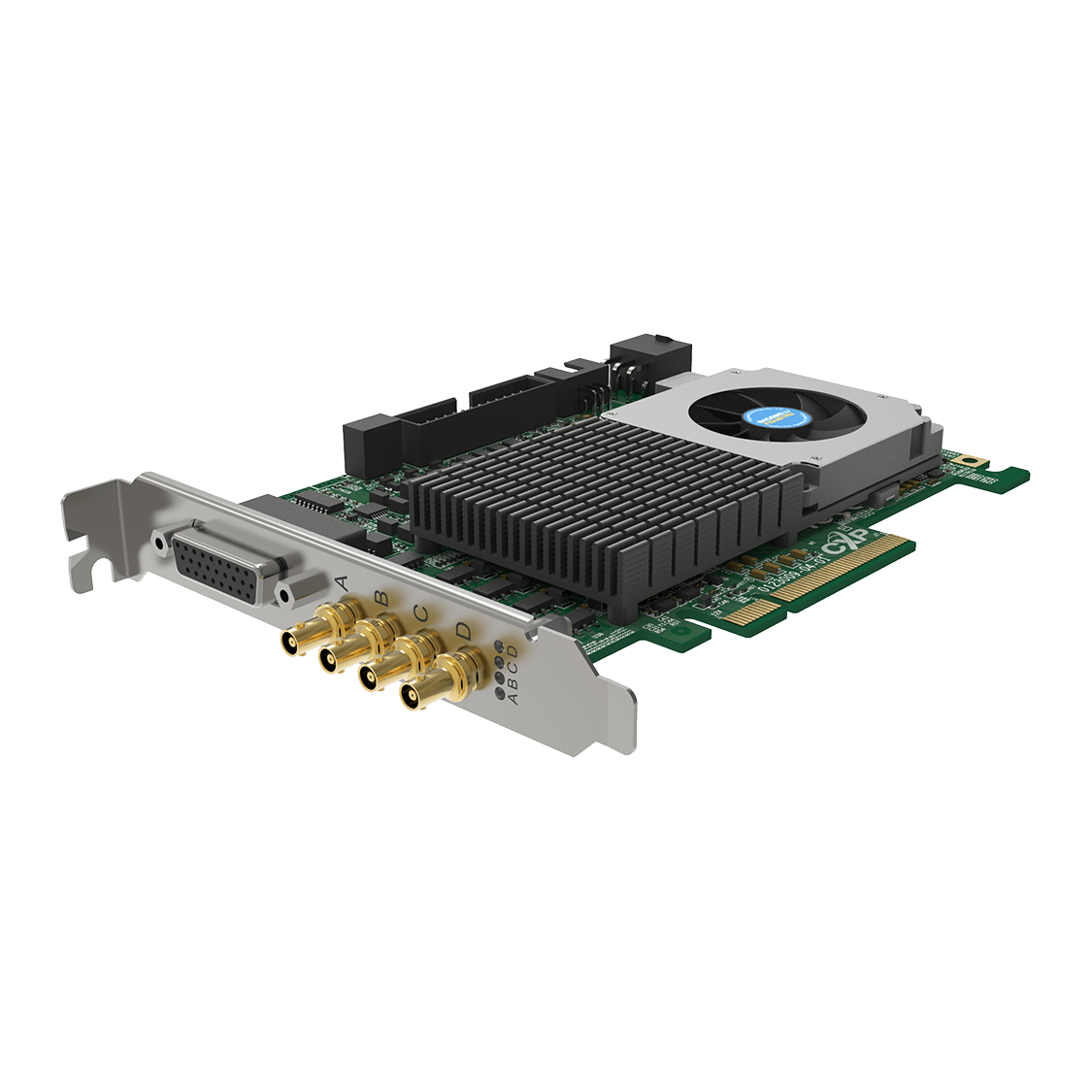

| I/O on PCI Bracket |
- 4* 75Ω Micro-BNC connectors
- 1* DB26 Female Connector (26-pin 3-row high-density female sub-D
connector)
- 4 differential opto-isolated inputs
- 4 differential high-speed inputs
- 3 differential opto-isolated outputs
- 2 single-ended TTL/LVTTL inputs/outputs
- 12V and GND
|
| I/O on PCB |
- 1* 2x13 2.54mm pitch connector
- 4 differential opto-isolated inputs
- 4 differential high-speed inputs
- 3 differential opto-isolated outputs
- 2 single-ended TTL/LVTTL inputs/outputs
- 12V to GND
- 1* 2x3 2.54 pitch connector, containing 4 multi-card
synchronization interfaces
|
| PoCXP Power Input |
A +12V power source must be connected to the AUXILIARY
POWER INPUT connector using a 6-pin PEG cable
|
| Supporting Software |
Flex I/O Viewer: compatible with all types of CXP industrial cameras, supporting parameter
configuration and preview
|
| Development Interface |
GenTL Producer and GenICam: support for Halcon, MVS, and many others |
| Development Samples |
Provides C/C++ secondary development sample source program |
| Operating Systems |
Windows 10/11/Server 2019(x64) |
| Other Functions |
Supports cascading through IO interfaces and synchronized acquisition trigger for multiple cards
|

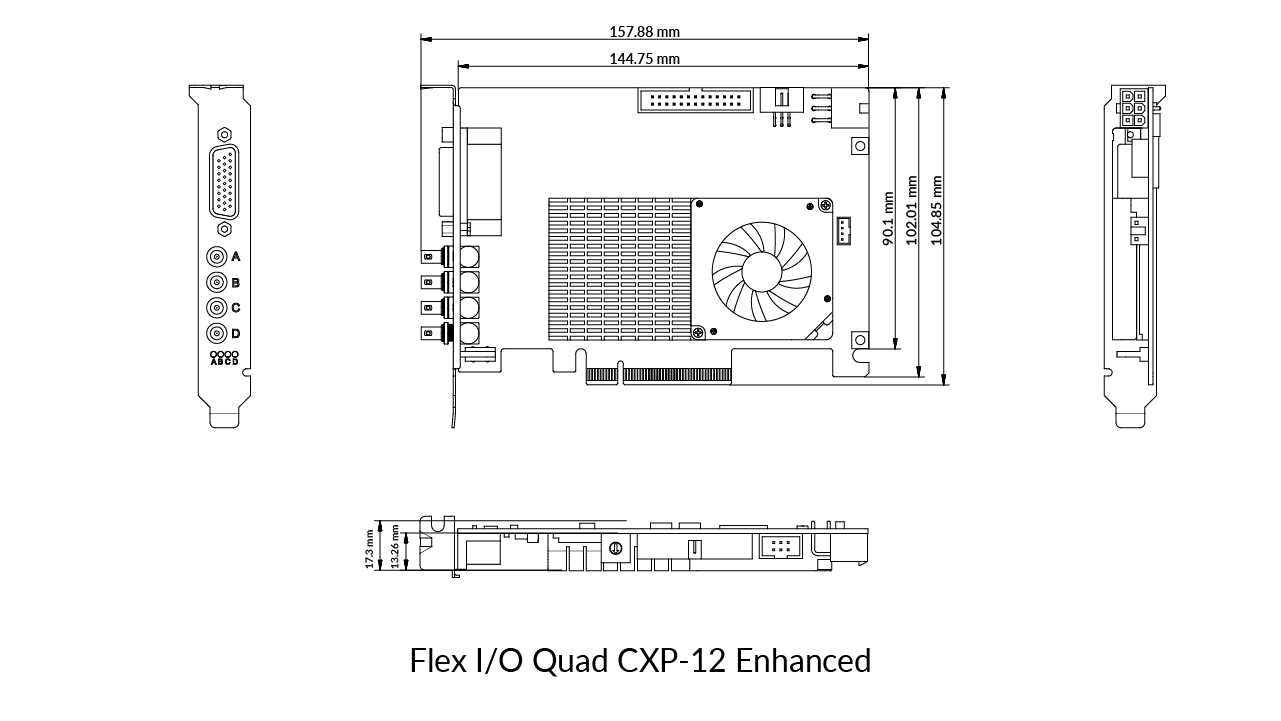

| Dimensions |
144.8mm x 104.9mm
|
| Fan |
Reports FPGA temperature and fan speed information, with the ability to set fan speed manually
|
| Power Consumption |
The capture card uses PCIe + 12V power supply. The power consumption of the whole card depends on
the firmware, with the typical power consumption ≤ 20W.
|
| Working Environment |
- Operating temperature: -10 to 50 deg C
- Storage temperature: -15 to 85 deg C
- Relative Humidity: 10% to 90% non-condensing
|
